Name: RADshield - 760mm Wide - Zenith Mobile Screen
SKU: RAD-SH-Z076-W066x10

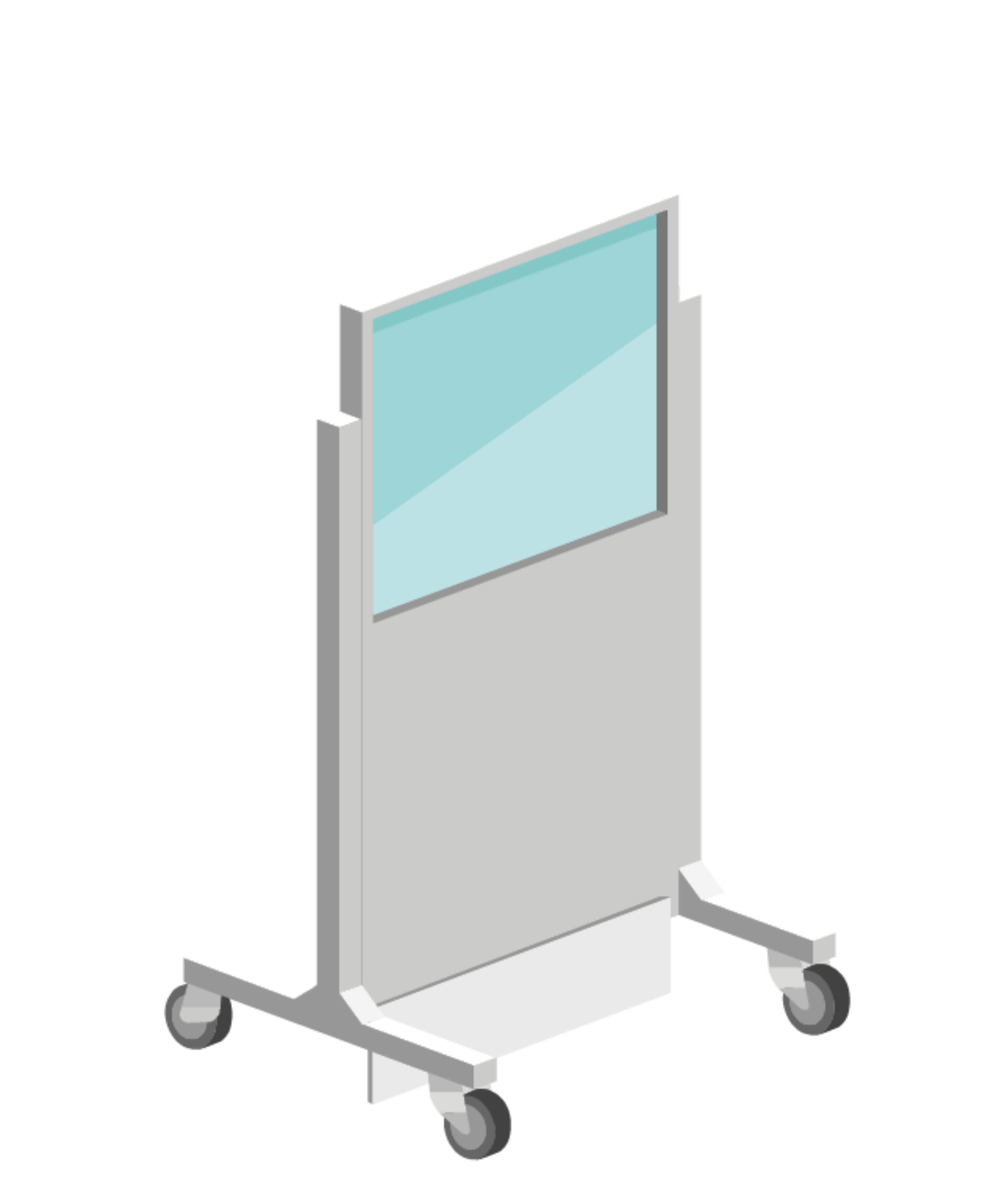

RADshield – 760mm Wide – Zenith Mobile Screen

RADshield 760mm wide mobile screen Zenith model.

Powder coated steel frames, precision TIG welded for years of trouble-free service completely enclosing the leaded glass panel for increased durability and safety. Includes extra support around base.

Lead equivalence is 2.1 Pb.

SKU: RAD-SH-Z076-W066x10 Category: Mobile Shields

Zenith Type 5 – 760mm Wide Mobile Shield:

Width: 760mm
Height: 1,975mm
Depth: 768mm
Window: 600 x 1,000 mm

Zenith Type Radiation Shield:

Type	Overall Dimensions	Window Dimensions	Product Code
Type 1	1100W x 1975H x 768D mm	1000 x 1800 mm	RAD-SH-Z110-W100x180
Type 2	1100W x 1975H x 768D mm	1000 x 1330 mm	RAD-SH-Z110-W100x133
Type 3	1100W x 1975H x 768D mm	1000 x 1000 mm	RAD-SH-Z110-W100x100
Type 4	1300W x 1975H x 768D mm	1200 x 1000 mm	RAD-SH-Z130-W120x100
Type 5	760W x 1975H x 768D mm	660 x 1000 mm	RAD-SH-Z076-W066x100
